12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

Cang Zhou Creator Drill Equipment Scinence And Technology Co.,LTD
Contact Now

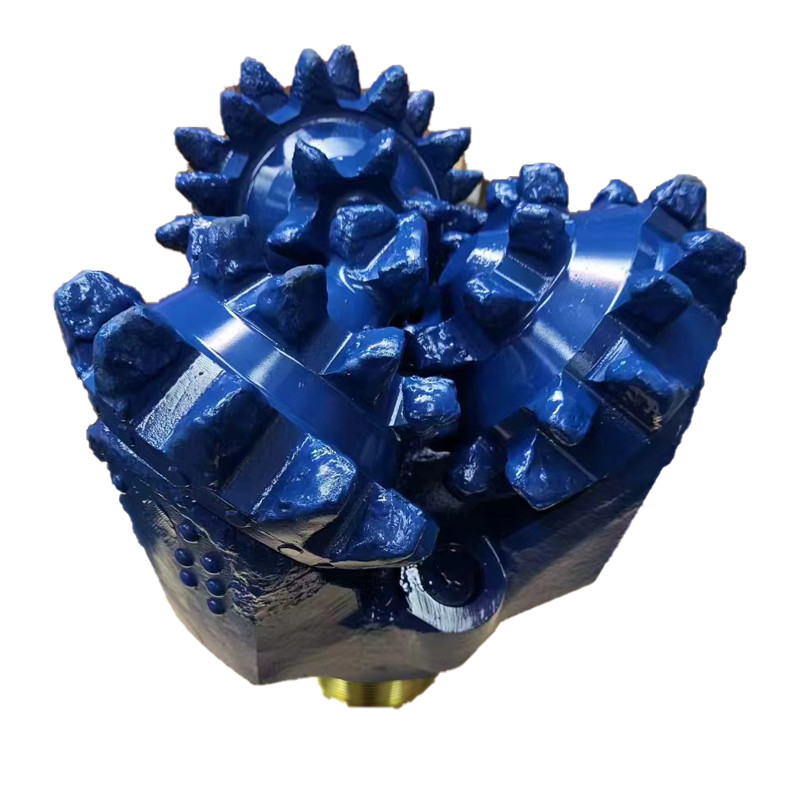

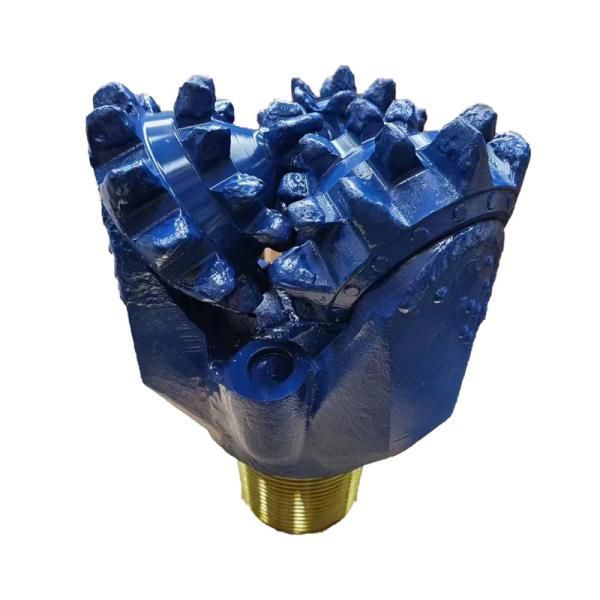

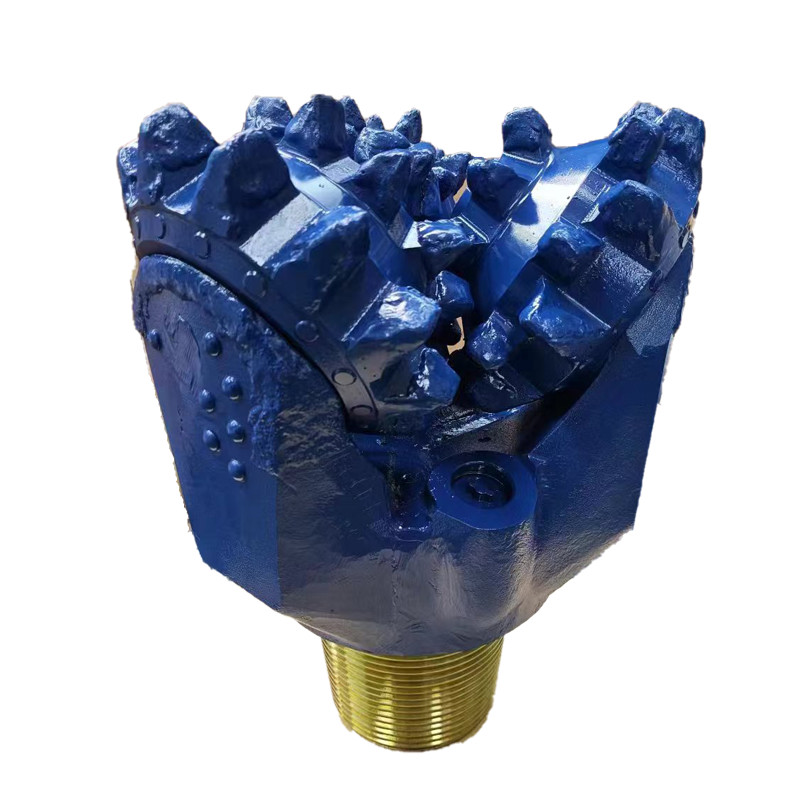

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

Brand Name : JSBIT

Model Number : 12 1/4inch 12inch 311mm

Certification : API and ISO standard

Place of Origin : Heibei province China

MOQ : 1 pcs

Price : bargain

Payment Terms : Western Union, T/T

Supply Ability : 500PCS /month

Delivery Time : 1 days

Packaging Details : Fumigation-free export wooden box

Application : Coal mining, quarry drilling, drilling

Product process : Forging and heat treatment

material : 20GrNiMo and tungsten carbide

Warranty : more than 80 hours

standard : API and ISO

Usage : HDD drilling, oil drilling, crossing strata, water well drilling.

Machinable size : 12 1/4inch12inch

IADC : 217

Contact Now

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

JSBIT tricone bits factory offers all kinds of tricone drill bits. Tricone bits are available in new and used tricone bits , steel tooth and tungsten carbide insert, in sizes from 37/8" to 36", for use in all formations, with any bearing: seal type / air type , tricone bits apply to oil gas geothermy mining water HDD and foundation industry.

IADC Recommended parameters Applicable strata
WOB KN/mm Rotating speed r/min
116,117 0.35-0.8 150-80 Extremely soft formations with high compressive strength and drillability, such as clay, mudstone, chalk
126,127 0.35-0.9 150-70 Soft formations with high compressive strength and drillability, such as mudstone, gypsum, salt rock, soft shale, soft limestone
136,137 0.35-1.0 120-60 Soft to medium-soft formations with high compressive strength and high drillability, such as medium-soft shale, anhydrite, medium-soft limestone, medium-soft sandstone and soft formations with hard interlayers
216,217 0.4-1.0 100-60 Soft to medium formations with compressive strength, such as soft shale, medium soft limestone, medium soft sandstone and soft formations with hard interlayers
246,247 0.4-1.0 80-50 Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite
417,437,447 0.35-0.9 150-70 Very soft formations with high compressive strength and drillability, such as clay, mudstone, chalk, gypsum, salt rock, soft shale, soft limestone
517,527 0.35-1.0 140-60 Soft formations with high compressive strength, such as mudstone, gypsum, salt rock, soft shale, soft limestone
537,547 0.45-1.0 120-50 Soft to medium formations with compressive strength, such as medium-soft shale, medium-soft limestone, medium-soft sandstone and medium formations with effective hard abrasive interlayers
617,627 0.45-1.1 90-50 Medium-hard formations with high compressive strength, such as hard shale, limestone, sandstone, dolomite
637 0.5-1.2 80-40 Hard formations with high compressive strength, such as sandstone, limestone, dolomite and anhydrite, marble

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling

12 1/4inch IADC217 Steel Tooth Tricone Bit For Water Well Drilling
