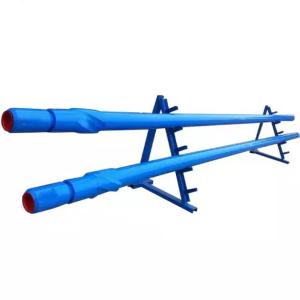

Directional Drilling Mud Motor downhole Chrome Plated Bending

Brand Name : JS

Place of Origin : Hebei, China

MOQ : 1 piece

Price : bargain

Supply Ability : The construction period of a HHD reamer is 5-7 days

Delivery Time : 15 days -30 days.

Packaging Details : Can be customized + carton

Product Name : Drilling Mud Motor

Origin : Hebei, China

Applicable industry : Energy and Mining

Mechanical test report : Provide

Material : Alloy steel

Certification : API

Application : Downhole power drilling tools driven by drilling mud power

Contact Now

Chrome-Plated Bending Mud Motor For Directional Drilling

Product Description

A downhole motor is a drill tool that converts hydraulic energy into mechanical energy through a power part, which consists of a stator and a rotor. The motor is usually divided into single blade (1/2) and multi-blade (N/N+1) according to the number of stator and rotor blades. In general, for motors of the same length of rotor/stator section, the more blades, the higher the output torque, and vice versa. In drilling operations, motors are usually used with roller cone bits and diamond bits, such as directional and vertical drilling, horizontal drilling, deviation correction, coring, reaming, side drilling, etc.

Product K7LZ95*7.0 K7LZ120*7.0 K7LZ165*7.0 K7LZ172*7.0 K7LZ197*7.0 K7LZ244*7.0
External diameter(inch) 3 3/4 4 3/4 6 1/2 6 3/4 7 3/4 9 5/8
External diameter(mm) 95 120 165 172 197 244
Flow rate(GPM) 510 1020 1938 2238.5 33.556.7 4270
Bit Speed(r/min) 60130 50100 4692 50100 5080 4070
Totalvolume(L) 1000 2770 5750 6000 11000 15000
Max.Torque(ft.ibs) 1600 4430 9200 9600 17600 24000
Max.WOB(ibs) 60 100 180 300 380 400
Max.Power (kW) 13.61 29 73 62.8 92.2 110
Electrical(L/min) 2 7/8 3 1/2 4 1/2 4 1/2 5 1/2 6 5/8
Pneumatic(ml/stroke) 2 7/8 3 1/2 4 1/2 4 1/2 6 5/8 6 5/8
Product Advantage

1. Increase penetration.

2. Better hole deviation control.

3. Reduce the drill string failure rate.

4. Reduce wear on rotary, Kelly, and rotary drives.

5. Reduced fuel costs because less energy is required to drive downhole motors compared to rotary drilling.

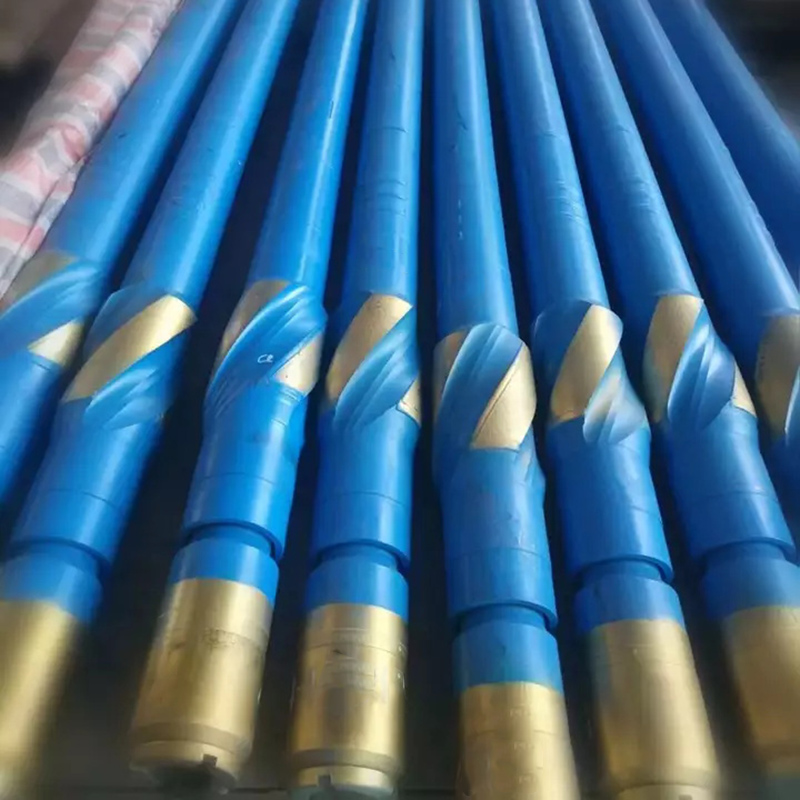

Directional Drilling Mud Motor downhole Chrome Plated Bending
About Us

Directional Drilling Mud Motor downhole Chrome Plated Bending

The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.

We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.

With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!

Usage Scenarios
Directional Drilling Mud Motor downhole Chrome Plated Bending
Production Process
Directional Drilling Mud Motor downhole Chrome Plated Bending
Transport
Directional Drilling Mud Motor downhole Chrome Plated Bending
F&Q

1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.

2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;

3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment

4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
