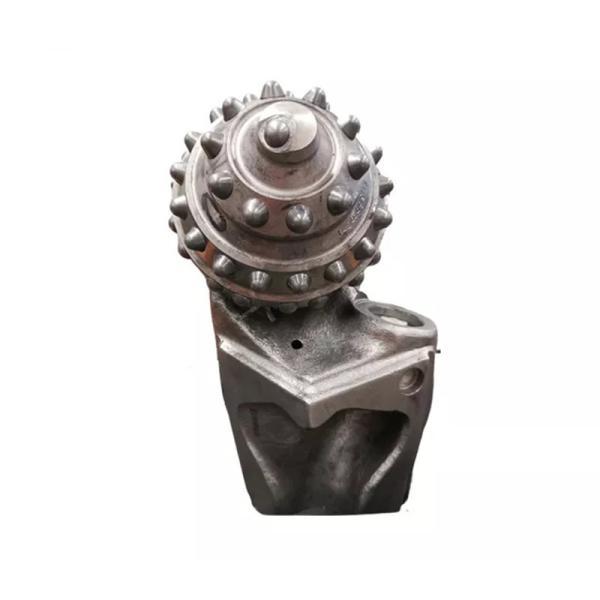

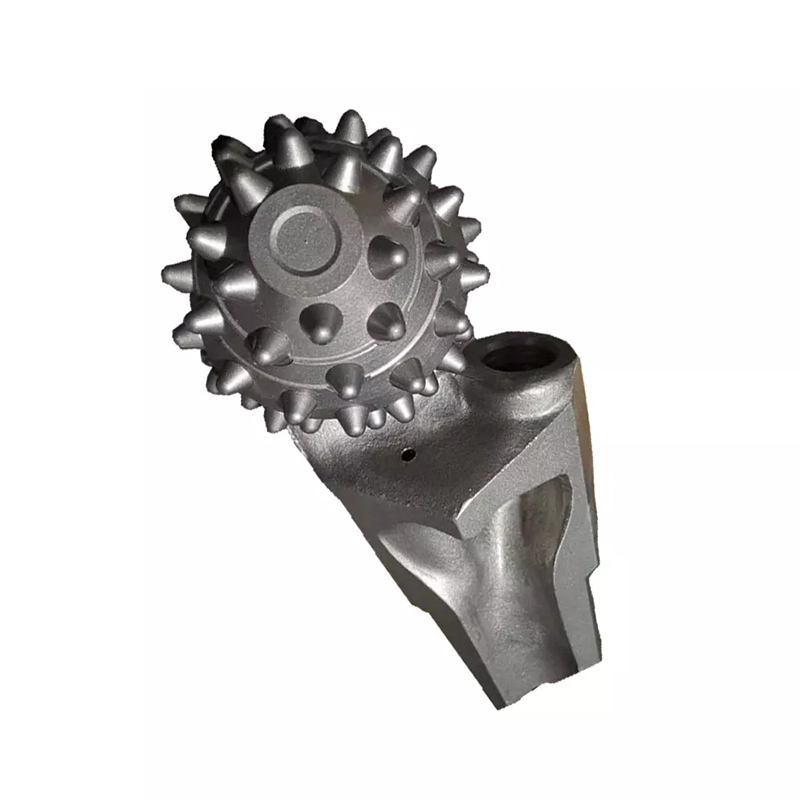

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

Brand Name : JS

Place of Origin : Hebei, China

MOQ : 1 piece

Price : bargain

Supply Ability : The construction period of a HHD reamer is 5-7 days

Delivery Time : 15 days -30 days.

Packaging Details : Can be customized + carton

Product Name : HDD Pilot Bit

Origin : Hebei, China

Type : Bit

Material : High manganese steel

Type of processing : Forging

Use : Drilling

Type of bearing : Journal bearings and seal bearings

Contact Now

Trenchless rock reamer bits for HDD mining drill horizontal directional holes

Product Description

The TCI random three-stage bit is equipped with a specially designed hob cutting structure that provides excellent performance. Their clever teeth ensure that cuttings of the right size are easily removed and transported for rapid drilling. The random cutting structure reduces vibration, increases drilling speed, and removes more rock per turn. The TCI random three-stage bit is equipped with a specially designed hob cutting structure that provides excellent performance. Their clever teeth ensure that cuttings of the right size are easily removed and transported for rapid drilling. The random cutting structure reduces vibration, increases drilling speed, and removes more rock per turn.

IADC	WOB(kN/mm)	RPM (r/min)	Suitable formation
437	0.35~0.95	140~60	Very soft with low compressive strength and high drillability,such as shale,clay,sandstone and conglomerate,etc.
517	0.35~1.05	120~50	Soft with low compressive strength and high drillability,such as shale,clay,sandstone and soft limestone,etc.
537	0.35~1.05	110~40	Medium soft with low compressive strength and harder abrasive stringers,such as hard shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
637	0.70~1.20	70~40	Medium hard with high compressive strength and high abrasiveness,such as limestone,dolomite, sandstone and chert.ect.
Note:The upper limits of WOB and RPM in above table should not be used simultaneously.

Product Advantage

1. Higher drilling speed, lighter load and smaller chip size make drilling easier to clean.

2. More durable cutting structure and bit integrity.

3. Higher quality leads to higher performance.

4. Allow deeper drilling without damaging seals while extending bearing life as much as possible.

5. Excellent bit body protection to withstand harsh horizontal drilling conditions.

6. Longer bearing life.

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

About Us

High Manganese Steel HDD Pilot Bit Trenchless HDD Rock Reamer

The company is located in Junziguan Village, Shijing Township, the ancient town of civilization, 156+8 kilometers away from the 106 National Road, with convenient and smooth transportation. Over the years, our company has focused on the design and manufacture of rock reaming bits. Quality and management meet and implement ISO 9001:2015 standards.

We always follow the "quality of survival, reputation and development" survival principle and "your demand is our demand" service purpose. Through continuous technological innovation, we strive to build our global brand.

With high quality products, perfect service and good reputation, we are willing to cooperate with our customers to create a better future! Welcome friends to visit the factory!

Usage Scenarios

Production Process

Transport

F&Q

1. Who are we?

We are headquartered in Hebei, China, and have been selling worldwide since 2019.

2. How can we guarantee the quality?

Pre-production samples are always used before mass production;

Always carry out final inspection before shipment;

3. What can you buy from us?

Roller cone bit, Pdc bit, drilling machine parts, oil drilling equipment

4. Why buy from us instead of other suppliers?

The company was founded in 2013, specializing in the production of tri-cone drill bits, PDC bits, hole openers, scraper bits and related drilling equipment. The company is located in Hebei, China.
